Automatic terminal pressing machine series

Model：PD-068HS
Power source：AC220V/50/60HS Single Phase
Function：Wire cutting, stripping, single end twisting, single/double end threading with waterproof pins, single and double end pressing
Productivity：3500 strips/hour (up to 100mm in length)
Wires can be processed：AWG#28-20

Inquiry

Product Description

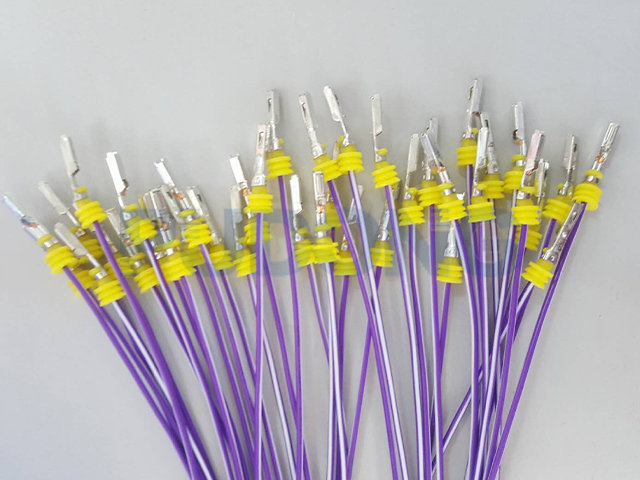

PD-068HS automatic waterproof plugging terminal machine is for wire automatic completion: automatic cutting, stripping, waterproof sealing plugging, automatic riveting and pressing in one automatic equipment. The machine is controlled by an imported PLC system, easy to learn and understand. Servo motor and imported ball screw drive, so that the wire feeding, stripping, waterproof plug, hitting the end of the position is very accurate and fast, the action between each other connected smoothly, the equipment for the module design structure, to avoid the use of a period of time between the wear and tear of the machinery caused by the accuracy of the knife frame parts, PLC programming control, all the actions can be operated by the touch screen, easy to operate, data adjustment can change the stripping cutting wire The data can be adjusted to change the length, cutting depth, end position, tin dip time, etc., saving time for the adjuster.

The on-screen input parameters do not require any manual adjustment and are truly automated.

Equipment parameters

Model	PD-068HS
Power source	AC220V/50/60HS Single Phase
Function	Wire cutting, stripping, single end twisting, single/double end threading with waterproof pins, single and double end pressing
Productivity	3500 strips/hour (up to 100mm in length)
Wires can be processed	AWG#28-20
Cut-off length	50mm-999mm
Stripping length	1-100mm
Pressing power	2T-3T
Air pressure	4-6KGF(Dry air）
Detection devices	Wire presence detection, terminal presence detection, waterproof plug presence detection, terminal compression detection, plugging detection, low air pressure detection
Body dimensions	700WX800LX1500H(MM)
Weight of fuselage	358KG
