Tin dipping machine

Product Category

Model：PD-08ZX-S
Power source：AC 220V/50/60HZ Single Phase
Power：1500w
Function：Cutting, peeling, twisting, single-head tinning, double-head tinning of all kinds of electronic wire harnesses
Productivity：600-1200 cycles/hour, 8 wires can be cut at the same time for wire diameters above 26 wires. (Wire length varies, speed capacity depends on wire material)

Inquiry

Product Description

Product description

PD-08ZX-S automatic double-headed tin dipping machine is designed for silicone wire, Teflon wire, PVC wire, coaxial wire and other kinds of electronic wire bundles to complete the four actions of cutting, stripping, twisting (optional) and tin dipping in one. Very fine wires and very short wires can be processed. The machine is operated digitally with PLC and HMI as the core control system, easy to learn and understand, for different processing specifications only screen input parameters do not require too much manual adjustment, truly automated work. The tool holder, front peeling part and rear peeling part are designed as modules to avoid the gap between the tool holders after a period of time due to the wear and tear of the machinery. The moving parts of the screw, guide rail, bearing and cylinder are all imported brands, making the machine stable and processing products with high precision.

Equipment parameters

Model	PD-08ZX-S
Power source	AC 220V/50/60HZ Single Phase
Power	1500w
Function	Cutting, peeling, twisting, single-head tinning, double-head tinning of all kinds of electronic wire harnesses
Productivity	600-1200 cycles/hour, 8 wires can be cut at the same time for wire diameters above 26 wires. (Wire length varies, speed capacity depends on wire material)
Wire diameter	16-32 gauge wire (special wire sizes available to order)
Length of cut line (glue left in place)	12-800mm （Special lengths can be made to order, cutting lengths of 40mm-20mm for very short line type machines, machine clamps etc. require special non-standard accessories）
Tin dip length	1mm—10mm
Air pressure	6kgf(Clean and dry air required)
Body dimensions	1280mm×750mm×1600mm
Weight of fuselage	Approx. 300kg

Machine features

1、Modular design, computer touch screen Chinese operation menu, cut wire length, stripping length, twisted wire length, dip tin depth, dip tin time and any other parameters can be adjusted on the screen, easy to learn and use, change processes and materials quickly save time and effort, to make up for the traditional machine requires a professional master, difficult to adjust the machine, unstable and many other problems.

2、Efficient motor drive, high configuration, high output, high cost performance, the cutting off and peeling parts of the tin dipping machine by the module structure to control the depth, than the traditional gear belt control structure is much more accurate, contact with the wire parts of the clip, are designed for soft rubber inlay structure, cutting very small wire is not easy to appear to hurt the copper wire phenomenon.

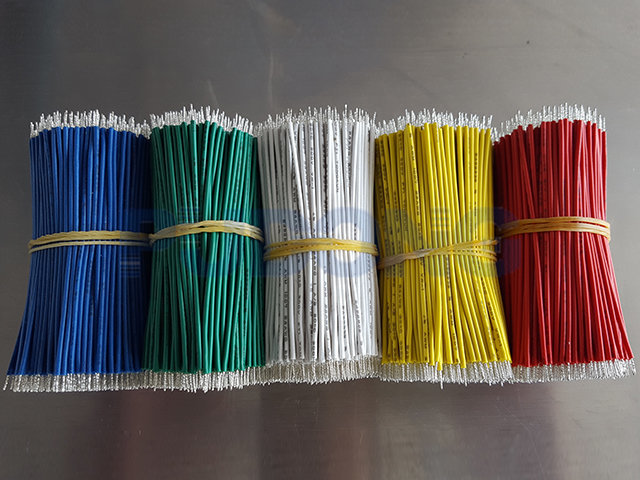

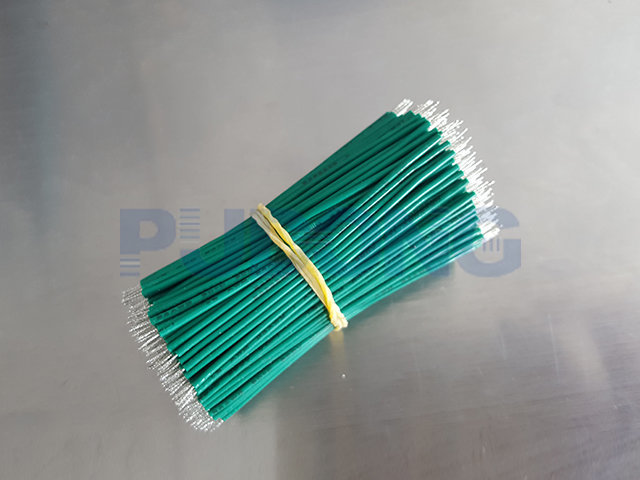

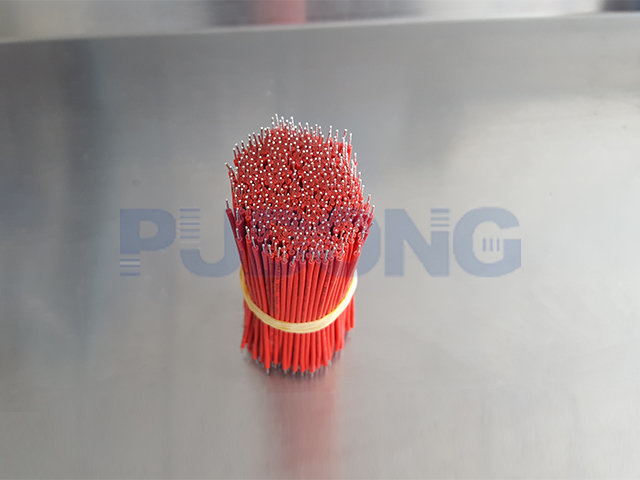

3、The machine can complete the manual can not do half dip tin effect, dip tin for 90 ° point dip, dip tin depth accurate, dip tin thickness uniform, dip tin effect perfect.

4、The whole machine is electroplated to ensure that it is not easy to rust, and the hardware parts are processed with high precision, and the quality is strictly controlled at every level to ensure the stability of the machine and the precision of the processed wire.

5、The tin furnace part is designed with automatic tin scraping device, so that the surface of the tin dip is free of oxidized tin chips while ensuring the neatness of the table.
