Multi-core wire terminal

Product Category

Automatic terminal pressing machine series

Name：Multi-conductor stripping and tapping machines
Model：PD-BD2.OT-S
Supply voltage：220V 50-60HZ
Power：1.5KW
Volume：690X450X12000mm
Net weight：118kg

Inquiry

Product Description

Machine introduction and characteristics

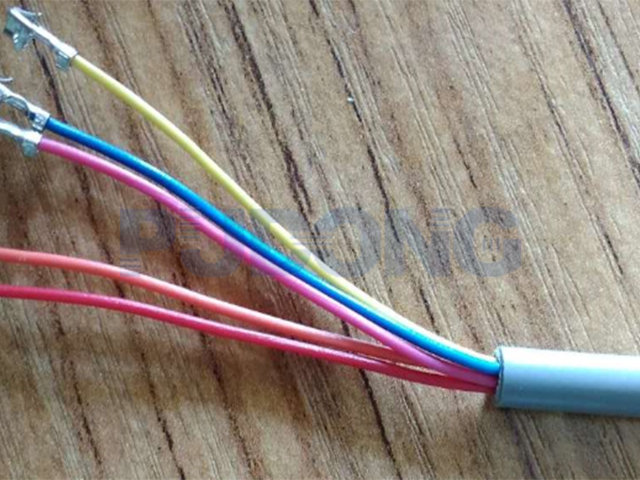

PD-BD2.OT-S multi-core wire terminal machine, is for sheathing wire, shielded wire, power cord and other multi-core wire automatically complete: peeling, automatic arrangement, automatic positioning, terminal pressing, under a series of actions. The machine adopts frequency conversion motor control, the mechanical loss is small and silent, power saving, OTP card type grinding tool, simple debugging and universal, press terminal and peeling parts are independent, peeling length can be adjusted, processing range is large, PLC programming control, all actions can be operated by touch screen, easy to operate, the machine can realize single step and single week switch, and work speed can be adjusted, the machine is equipped with waste disposal device, to ensure that the table is clean. The machine is equipped with a waste disposal device to ensure a neat and tidy table surface.

Equipment parameters

Name	Multi-conductor stripping and tapping machines
Model	PD-BD2.OT-S
Supply voltage	220V 50-60HZ
Power	1.5KW
Volume	690X450X12000mm
Net weight	118kg
Stripping length	0-25mm
Stress	1.5-3T
Applicable wires	Multi-core cables such as shielded, sheathed and power cables
Applicable moulds	OTP horizontal and straight grinding tools
Productivity	Approx. 3600 bars/hour

Keys: Ultrasonic welding machine,Stripping machine
