Medium frequency spot welding machine series

Equipment model：DHJ-ZP170KW-01
Function：Wire cutting, stripping, spot-soldering, cutting, undercutting
Spot welding method：Medium frequency inverter spot welding
Length of cut line：40mm-200mm（Customizable）
Tare length：Customised to customer requirements
Wire diameter range：3-30 square feet
Production capacity：≥1200 bars/hour

Inquiry

Product Description

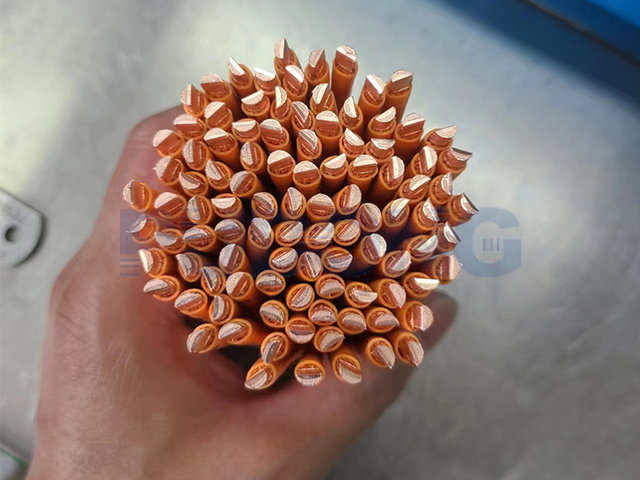

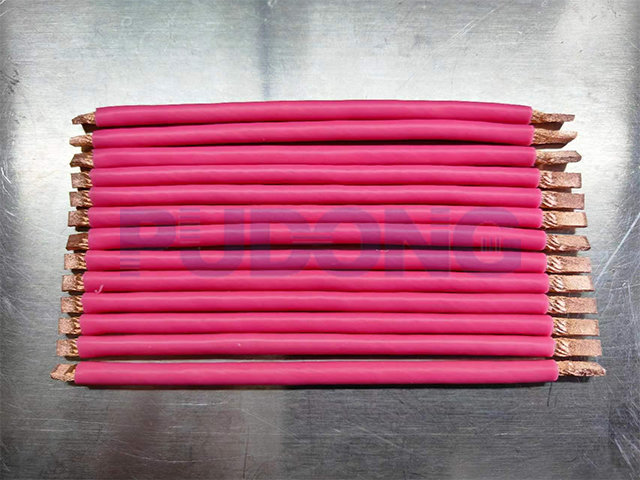

DHJ-ZP170KW-01 automatic spot welding machine for copper wire, copper stranded wire, copper braided wire (copper braid wire) spot welding and forming equipment, the equipment can be completed in one time: feeding wire, cutting wire, spot welding and forming, cutting off and feeding all actions, the equipment is widely used in: electrical and electric industry (such as: relay, leakage protection switch internal wire processing), automotive wire harness industry, electronics industry, etc.

This machine, with PLC human-machine interface as the core of the control system using medium frequency welding power supply, low energy consumption, greatly reducing the use of electricity, can effectively reduce production costs. The welding time is short, the welding quality is stable, the production efficiency is high, and the oxidation of the welding surface is less. Adopting automatic feeding system, the welding and cutting position is precise and the cutting length and cutting position are adjustable. The machine can meet the requirements of many specifications and different shapes of spot welding, such as: square, crescent-shaped, etc. The whole machine is equipped with well-known brands, the machine has the functions of power supply indication, overheating protection, welding parameters display and record, etc., the welding quality is stable and the quality is guaranteed.

To achieve automatic production operations, completely get rid of the traditional need to complete more than one set of equipment, multiple jobs to complete production operations defects. Fully automated production greatly reduces the company's operating costs while improving product quality. It has solved many problems such as uncontrollable output and quality in traditional processing.

Equipment parameters

Equipment model	DHJ-ZP170KW-01
Function	Wire cutting, stripping, spot-soldering, cutting, undercutting
Spot welding method	Medium frequency inverter spot welding
Length of cut line	40mm-200mm（Customizable）
Tare length	Customised to customer requirements
Wire diameter range	3-30 square feet
Production capacity	≥1200 bars/hour
Rated current	10A
Rated voltage	380V/220V
Cooling methods	Water circulation cooling
Machine weight	Approximately 400kg
Machine size	1000mmX750mmX1500mm(without projection)

Product features and advantages

1、The machine touch screen operation, cut wire length stripping length spot welding length including (front welding length back welding length) can be adjusted on the touch screen, replace new product specifications more aspects, no need to move mechanical parts, foolproof operation ordinary workers also need only simple training can be on the job.

2、Using medium frequency welding power supply, low energy consumption, greatly reducing the electricity consumption, can effectively reduce production costs.

3、Welding cycle from pressurization, slow rise, spot welding, cooling, welding 2, cooling 2, maintenance, rest and other timing, and can set multi-pulse output mode, can meet the requirements of various materials spot welding process.

4、Short welding time, stable spot welding quality, high production efficiency, less oxidation on the spot welding surface, and compared to other welding methods, the surface of IF spot welding products is smoother and flatter without burrs.

5、Adopting automatic feeding system, precise welding and cutting position, cutting length and cutting position are adjustable, which can meet a variety of specifications of wire spot welding.

6、The whole machine is equipped with well-known brands, stable welding quality and guaranteed quality. The machine has the functions of power indication, overheating protection, welding parameters display and record.
